About

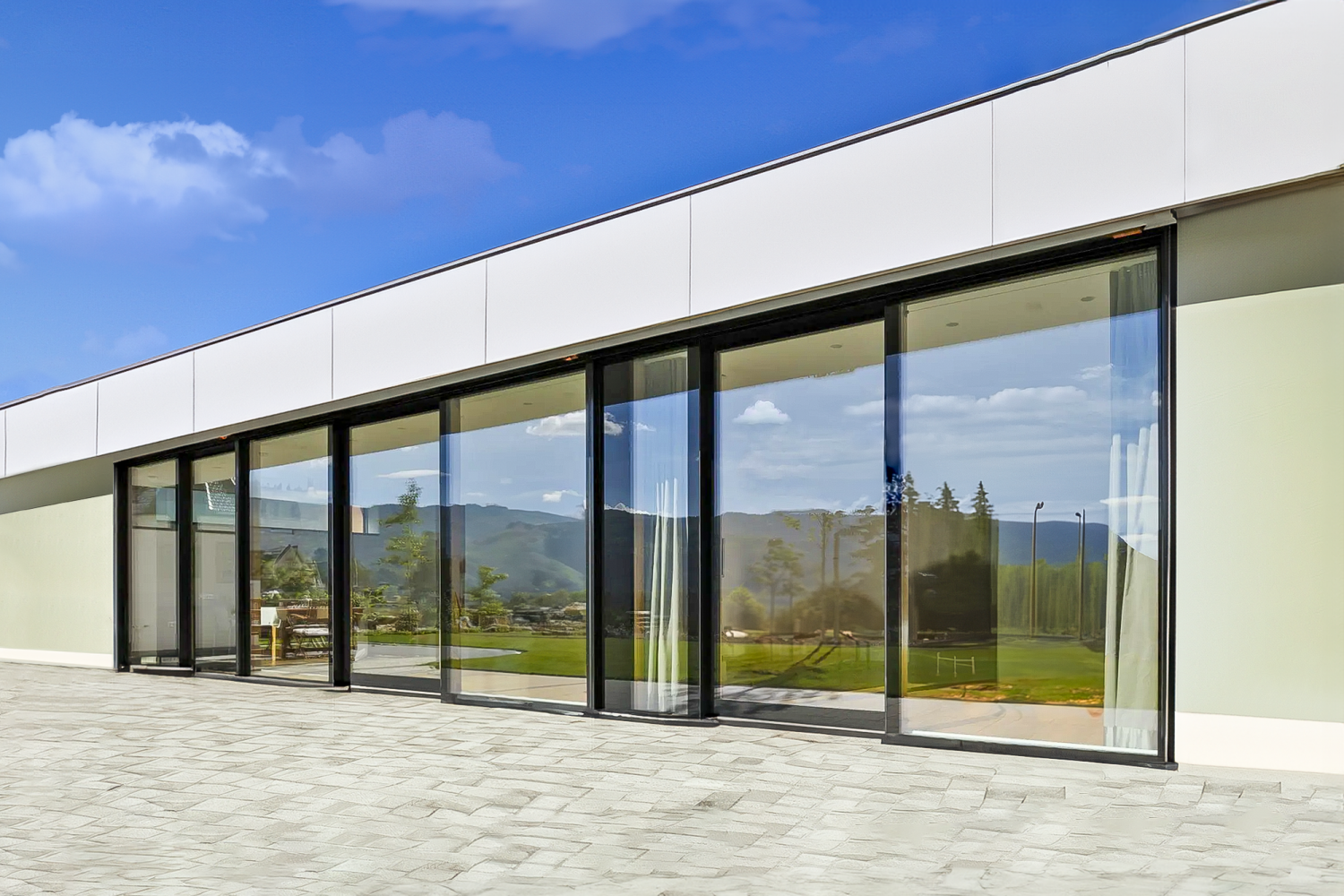

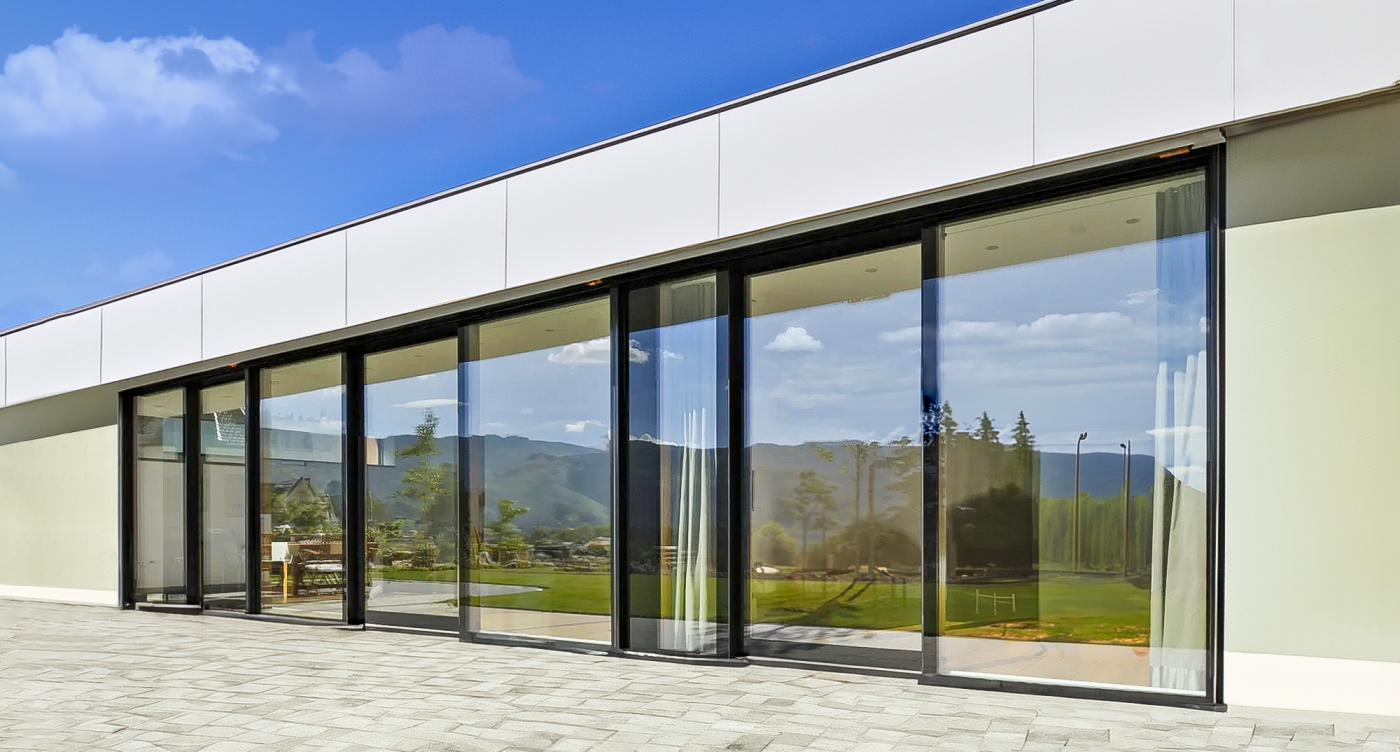

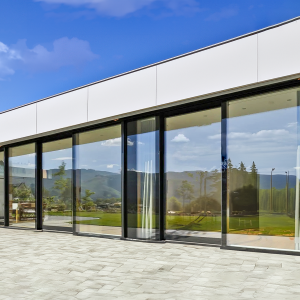

Structural glass-wood lift and slide door is unique solution where exterior is covered with structural glass in black or any RAL tone creating continuous structural glass lift & slide facade that provides linear and flash design reflection without any vertical aluclad posts. From the interior it offers warm natural wooden look. All wood is FSC certified.
Advantages and application
With sash height up to 3200mm, total combining width can be achieved up to 12000mm and more. Structural glass-wood lift and slide door is ultimate solution for terrace openings where large glazed area require access to outside, providing continuous solid glazed area without any aluminium details. Through the multiple combining parts and unique exterior design, structural glass lift & slide door is matching solution to most modern, avantgarde or futuristic architecture looks where the highest demands are placed on aesthetics, minimalistic design, air-tightness, insulating ability, function and durability.
Technical information
Opening: structural glass-wood lift & slide door
Total depth (mm): 78 or 92mm
Size: Up to 12000 x 3200mm (L x H)
Material: Wood + structural glass
Glazing: Double or Triple glazed.
Sliding door type: Structural glass-wood
Treshold: Aluminum
Air permeability (EN 1026): Class 4 (classification EN 12207)
Watertightness (EN 1027): E1050 (classification EN 12208
Resistance to wind loads (EN 12211): C2/B2 (classification EN 12210)
Sound: 35 dB Rw+Ctr
Thermal insulation:
Window: Uw* = 0.86 W/m2K (78mm)
Window: Uw* = 0.81 W/m2K (92mm)
Ug = up to 0.47 W/m2K
Glass
Lift & slide doors have extensive possibilities for glazing type and thickness of the choice, it is possible to reach different sun protection, sound insulation, personal safety, self-cleaning, self-dimming, painted glass, fire safety, anti-burglar, bird protection, thermal insulation levels. More information on glass production available at stiklucentrs.lv
Accessories
Function of the lift & slide door is provided by GU.
Sash and door handles are used from GU or HOPPE. Standart colors for handles are stainless steel, black or silver tone.
Special features available such as:
*close door in ventilation position
*PAS24 or RC3
*Soft-close function
*EPower – automatic opening
*GU Thermostep- barrier free tres hold;
*90 degree – corner sliding door;
Paint and surface treatment
External structural glass: all colours offered by the RAL, NCS catalogue Internal wooden part: all colours offered by the RAL, NCS catalogue. Water-based stains and lacquers provide ecological, environment-friendly and natural product look. Most used wood for windows is finger-jointed pine. Oak, mahogany, sapeli and other wood species can be offered to meet client’s expectations and wishes.
Non-finger-jointed option is available for all types of wood.
Wood is warm, well absorbs sound and provides comfort and warmth to the house, meanwhile aluminium is a modern high-technology product that is particularly resistant to external impact, relatively light and does not add a lot of additional weight to window.
